Información Básica.
No. de Modelo.
FY525LPG20517
El volumen del tanque
15001-30000L
Wheel Drive
6×4
Asientos
≤5
Caballo de fuerza
351-450hp
Capacidad del motor
4-6L
Almacenamiento
LPG
Certificación de Neumáticos
ECE, GCC, ISO, DOT
Diseño de Neumáticos
sin Tubo
Condición
Nuevo
marca de camiones
sinotruk hoho, dongfeng, i-suzu, fotón, faw
modelo de transmisión de camiones
4X2/ 6X4/ 8X4
potencia de potencia de motor
336HP/350HP/ 371HP
conduzca la dirección
hd/rhd
neumático
12.00r22.5
rellenado de la máquina
caudalímetro, bomba, manguera de llenado
material del tanque
q345r
espesor si sólido
12mm
prueba del tanque
100% Rt, Mt, Ut
prueba de presión
prueba de presión de agua
tratamiento térmico
sí
medio de carga
propano, glp
presión de deisng del depósito
1,61mpa
propósito del camión
transporte y recarga de la botella de gas
larga distancia
sí, disponible
Paquete de Transporte
Nude Package
Especificación
10800*2500*3800mm
Marca Comercial
CLW
Origen
China
Código del HS
8716319000
Capacidad de Producción
10units/Month
Descripción de Producto

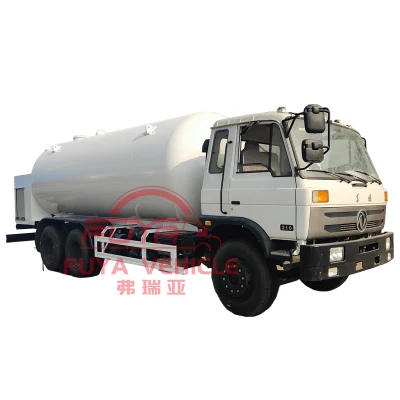

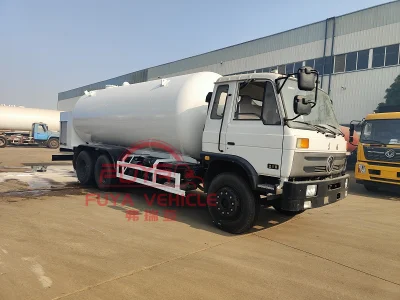

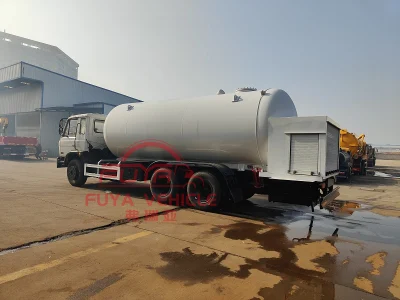

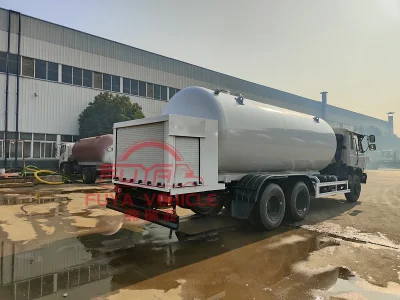

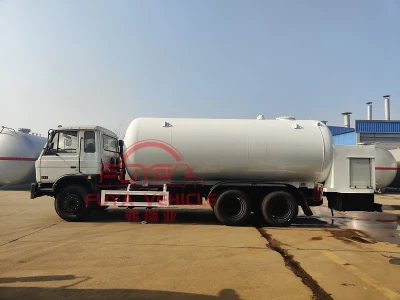

210hp Dongfeng 20000liter USED 10MT LPG road tanker with flow meter
Technique Data
(only for reference, the detail equipment will be adjusted according to customer's request)
| Specification | |
| Item No. | Parameters |
| Overall Dimension | 10590x2495x3350 mm |
| Driving Model | Left hand drive |
| Gross Vehicle Weight | 25000 kg |
| Curb Weight | 9200 kg |
| Payload | 15800kg |
| Wheel Base | 4600+1350 mm |
| Front/rear Tread | 2022/1830 mm |
| Approach/Departure Angle | 16/12 degree |
| Front Axle | 7000kg |
| Rear Axle | ST16 16000*2 kg |
| Engine | WD615.69,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling |
| Engine horsepower | 336 HP EUROII |
| Displacement | 9726mL (Diesel) |
| Max Driving Speed | 90 km/h |
| Gearbox | HW19710CL |
| Cabin | HW76 standard cabin,2~3 Passenger allowed,with Air Conditioner |
| Tire | 12R22.5 (11 pieces) |
| LPG tank | |
| Volume: | 24cbm |
| Tank material: | Q345R |
| Tank diameter: | 2050mm |
| Tank thickness: | 10mm |
| Tank length: | 7644mm |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Accessory | |
| Level Gauge | Manuel Switch Operation Type |
| Safety Valve | 1 |
| Tool and Valve Box | 1 |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Emergency Valve | 1 |
| Fender | Steel |
| Fire Extinguisher | 2 |
| Anti-static Tape | 1 |
| Standard | |
| Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels | |
